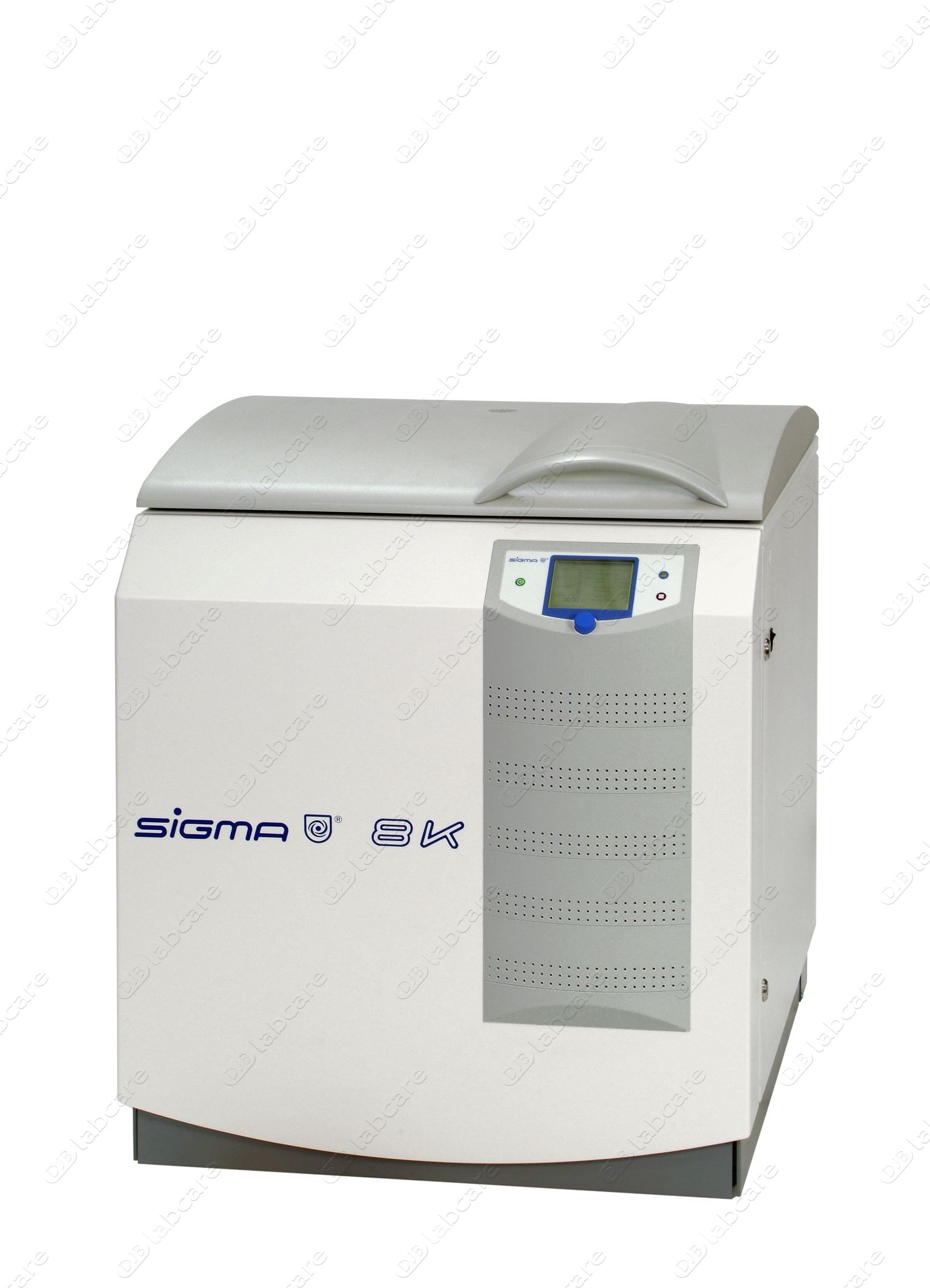

Sigma 8K - Floor centrifuge - DJB Labcare - UK centrifuge sales, service for centrifuges

Brochure (1.0MB PDF)

Sigma 8K 10855

Very High capacity (12x1000ml), Compact refrigerated floor standing centrifuge for universal use in blood banks, clinical laboratories and research.

Details

Compact refrigerated floor standing centrifuge for universal use in blood banks, clinical laboratories and research
Capacity up to 6 l in angle rotor; 12 x 1l, 6 x 1.5l or 12 blood bags in swing-out rotor
Solid construction, suitable for continous use
Maintenance-free drive, high imbalance tolerance up to approx. 80 g
Speed range 100 - 10.500 rpm
Automatic rotor identification prevents spinning rotors overspeed
Efficient refrigeration; temperature adjustable between -20 °C and +40 °C, standstill cooling, with refrigerant R404a
Stainless steel chamber

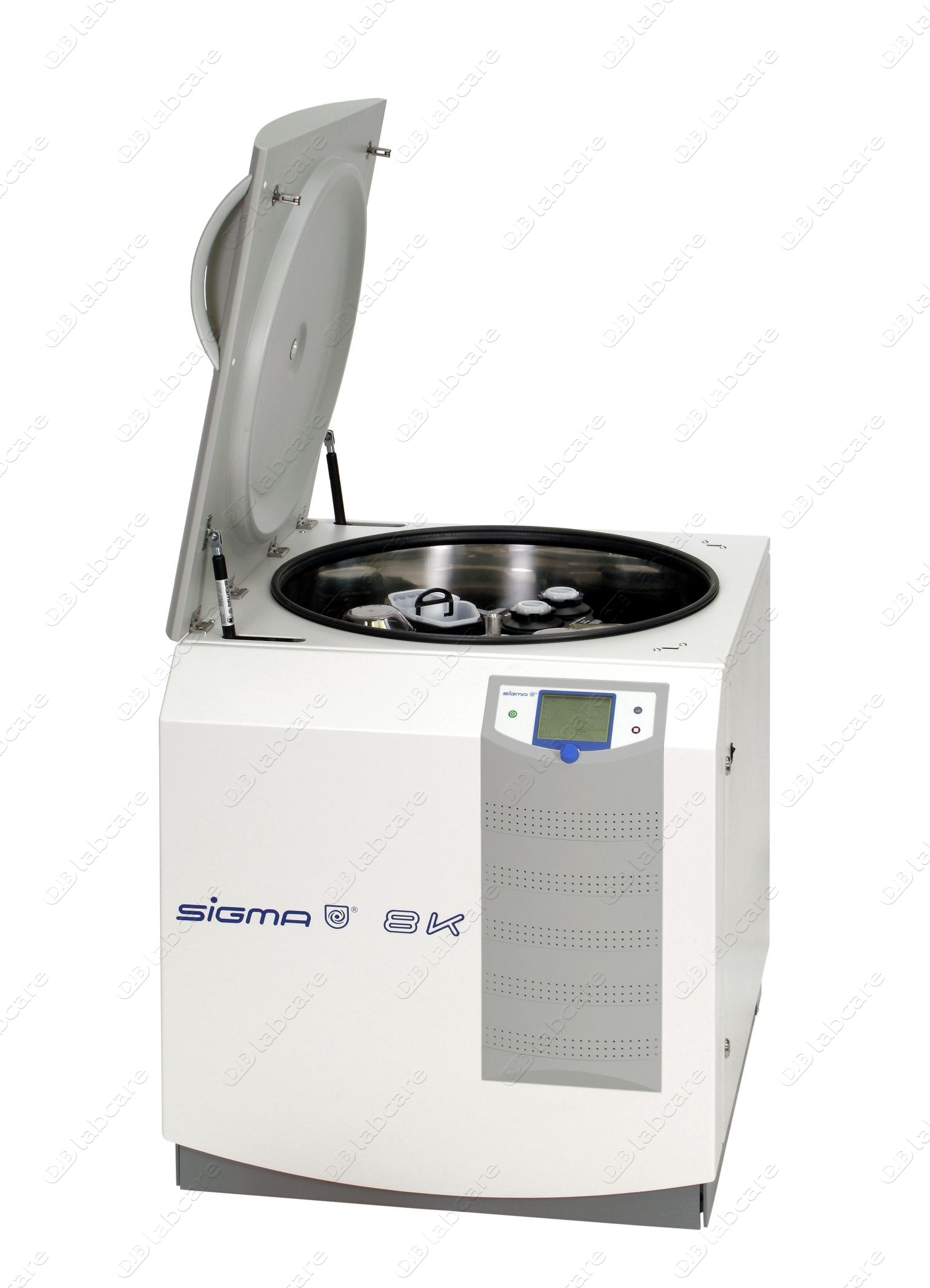

The lid is hinged on the left hand side
Easy open the centrifuge lid via pneumatic springs
Two motorized lid locks provide safe, assured lid-locking
Power failure, emergency lid opening
Ergonomic loading height of just 88 cm

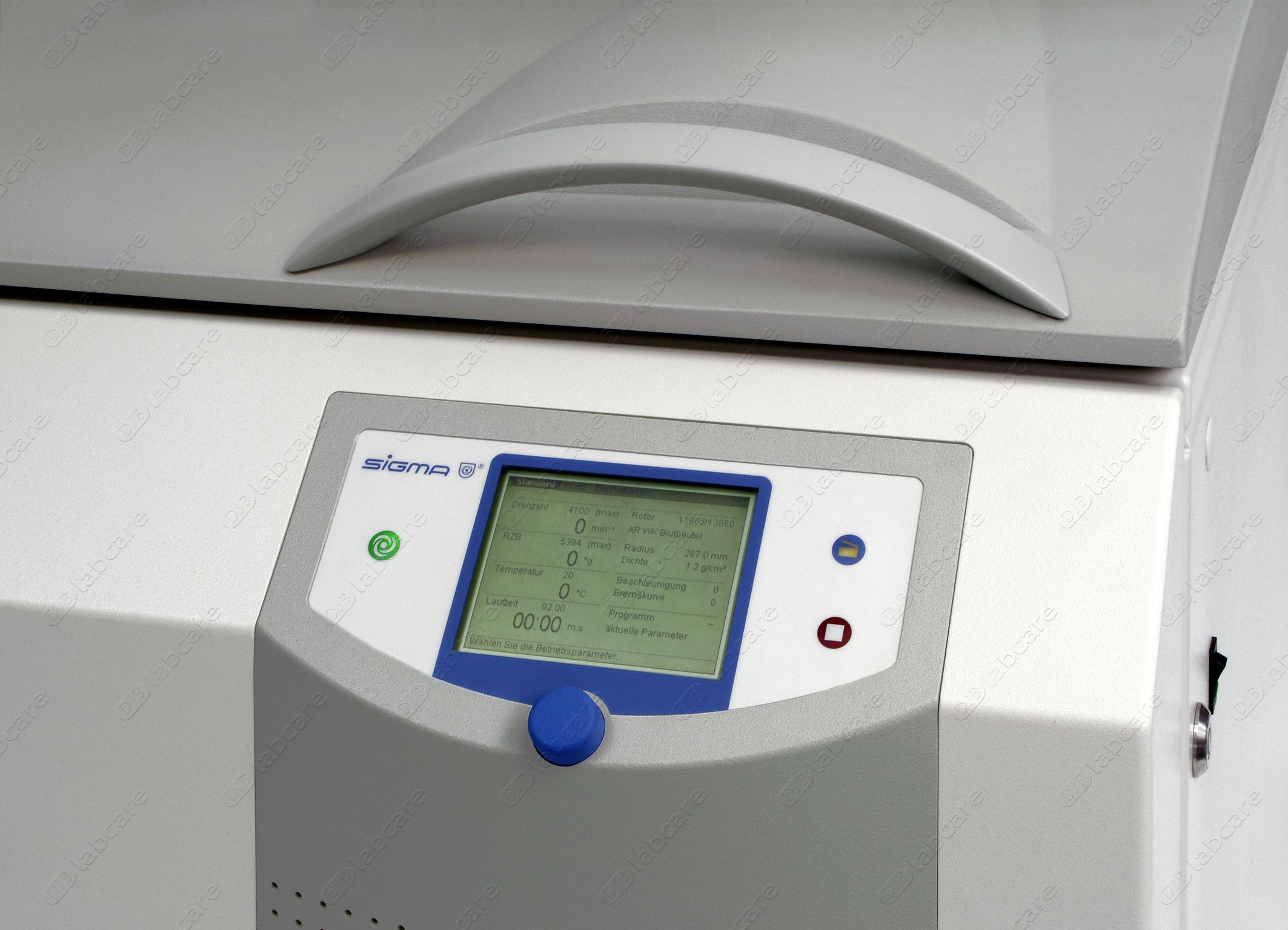

The user friendly control unit is integrated in the front panel
Centrifuge fits through a door opening of only 82 cm
The centrifuge stands on movable castors an adjustable feet to even out the floor
Easily serviceable
All international standards are met, e.g. IEC 1010, CE, WEEE

Options

Data logging via RS 232 Water-cooled compressors Sealed housing and water-cooled compressors, sterile room version Inert gas injection with analysis of the oxygen content in the exhaust emission Spincontrol - Professional

Sophisticated version of the unique SIGMA single-knob control with backlit graphical LCD-display Selectable languages: German, English All important run parameters at a glance Permanent display of set and actual values: time, speed, gravitational field and temperature 60 programs can be named and stored in a memory with all run parameters Rapid cooling program 10 linear, 10 quadratic and 10 user defined acceleration an deceleration curves including brakeless deceleration Setting of values in steps of 100 or 1 rpm resp. 10 or 1 x g Time 0 - 99 h 59 min, continuous operation, short run Electronic imbalance monitoring, acoustic and visual alarm with fast deceleration End of run alarm, selectable, can be switched of Plain text display of information an error messages Run time and cycles count for the rotors used

Selectable additional functions: Time integral, standstill cooling, automatic unlocking of lid after end of run, timing after set speed has been reached, password protection of programs in memory, information in case of excessive chamber temperature with adjustable tolerance, speed adjustment for substances with density exceeding 1,2 g/ccm, start delay, automatic speed adjustment for different radii to have same gravitational field, temperature display in °F oder °C, display of acceleration and deceleration curves, program rotation

Option: Interface for optical end of run indication

Order. no. 10855 (3 x 400 V /50 Hz) air cooled Order. no. 10856 (3 x 220 V / 60 Hz) air cooled Order. no. 10857 (3 x 400 V / 50 Hz) water cooled

Meets the requirements of IEC 1010 part 1 and part 2.

Features

Refrigeration

Typical capacities

100 x Microlitre 0.2-2ml

648 x Blood tube 4-7ml (13mm)

114 x Blood tube 7-10ml (16mm)

72 x Conical 15ml

30 x Conical 50ml

42 x Universal 25ml

Availability

New price

£21000.00

Manufacturer's list price. Please call our sales office for potential discounts that may apply.

Accessories for Sigma 8K


	12202 (Angle rotor 100 x 1.5/2.2 ml) Centrifuge rotors £2175.00 Angle rotor 100 x 1.5/2.2 ml, for e.g. reaction vials no. 15008, 15040, (2 lines, angle...
	15008 (Reaction vials 1.5ml) Centrifuge tubes 100 pcs. per pack
	15040 (Reaction vials 2.2ml) Centrifuge tubes 100 pcs. per pack
	13000 (Adapter for reaction vials 0.25/0.4 ml no. 15014) Centrifuge adapters £2.15 Adapter for reaction vials 0.25/0.4 ml no. 15014
	15014 (100 x Polypropylene reaction vial 0.4ml) Centrifuge tubes
	13002 (Adapter for reaction vials 0.5/0.75 ml) Centrifuge adapters £2.15 Adapter for reaction vials 0.5/0.75 ml, Ø 7.9/10 x 28/31 mm, e.g. no. 15005
	15005 (100 x Reaction vials 0.5ml) Centrifuge tubes
	13021 (Adapter for PCR-tube 0.2 ml) Centrifuge adapters £2.15 Adapter for PCR-tube 0.2 ml, e.g no. 15042
	15042 (100 x Reaction vials 0.2ml) Centrifuge tubes 100 pcs. per pack
	12258 (Angle rotor 8 x 250 ml) Centrifuge rotors £3180.00 Angle rotor 8 x 250 ml, for bottles no. 13255, 15247, 15248, 15249
	14122 (Adapter for 9 reaction vials 1.5/2.2 ml) Centrifuge adapters £68.00 Adapter for 9 reaction vials 1.5/2.2 ml, max. Ø 11 mm, e.g. no. 15008, 15040
	14124 (Adapter for 6 round bottom tubes approx. 10 ml) Centrifuge adapters £68.00 Adapter for 6 round bottom tubes approx. 10 ml, max.
	15010 (Polycarbonate tube 10ml) Centrifuge tubes Includes screw cap. Ø 16.1 x 81.1 mm
	15039 (Polypropylene tube 10ml) Centrifuge tubes Incl. screw cap, Ø 16.1 x 81.1 mm
	15000 (Polyfluor tube 10ml) Centrifuge tubes Incl. screw cap, Ø 16.1 x 81.1 mm
	13026 (Stainless steel tube 10ml) Centrifuge tubes Ø 15.7 x 76 mm, sealable with cap no. 17126
	17126 (Round stainless steel sealing cap) Centrifuge lids £105.00 Round stainless steel sealing cap
	14125 (Adapter for 4 culture tubes 15 ml) Centrifuge adapters £68.00 Adapter for 4 culture tubes 15 ml, cap max. Ø 23 mm, e.g. no. 15115
	15115 (15ml culture tube) Centrifuge tubes Culture tube Nunc, 15 ml, pointed bottom, polypropylene, incl. screw cap Ø 23 mm
	14127 (Adapter for 2 round bottom tubes approx. 30 ml) Centrifuge adapters £68.00 Adapter for 2 round bottom tubes approx. 30 ml max.
	15030 (Polycarbonate tube 30ml) Centrifuge tubes Incl. screw cap,
	15032 (Polypropylene tube 27ml) Centrifuge tubes Incl. screw cap,
	15029 (Polyfluor tube 28ml) Centrifuge tubes Incl. screw cap,
	14129 (Adapter for 1 round bottom tube approx. 42 ml) Centrifuge adapters £68.00 Adapter for 1 round bottom tube approx. 42 ml, max.
	15051 (Polyfluor tube 38ml) Centrifuge tubes incl. screw cap, Ø 28.5 x 107 mm
	15052 (Polypropylene tube 42ml) Centrifuge tubes incl. screw cap, Ø 28.8 x 107 mm
	15054 (Polycarbonate tube 42ml) Centrifuge tubes incl. screw cap, Ø 28.8 x 107 mm
	13055 (Stainless steel tube 50ml) Centrifuge tubes Ø 28.5 x 101.5 mm, sealable with cap no. 17054
	17054 (Stainless steel sealing cap) Centrifuge lids £94.00 Stainless steel sealing cap
	14131 (Adapter for 1 culture tube 50 ml) Centrifuge adapters £68.00 Adapter for 1 culture tube 50 ml e.g. no.15151
	15151 (50ml culture tube) Centrifuge tubes Culture tube Nunc, 50 ml, pointed bottom, polypropylene, incl. screw cap
	14134 (Adapter for 1 round bottom tube approx. 85 ml) Centrifuge adapters £68.00 Adapter for 1 round bottom tube approx. 85 ml, max.
	15074 (Polycarbonate tube 82ml) Centrifuge tubes incl. special aluminium screw cap with seal for high speeds, Ø 38 x 108 mm
	15075 (Polycarbonate tube 82ml) Centrifuge tubes incl. screw cap, Ø 38 x 112 mm
	15076 (Polypropylene tube 78ml) Centrifuge tubes incl. screw cap, Ø 38 x 112 mm
	15080 (Polyfluor tube 81 ml) Centrifuge tubes incl. screw cap, Ø 38 x 112 mm
	13085 (Stainless steel tube 85 ml) Centrifuge tubes Ø 38 x 103 mm, sealable with cap no. 17185
	17185 (Round stainless steel sealing cap) Centrifuge lids £166.00 Round stainless steel sealing cap
	13255 (Stainless steel bottle 250 ml) Centrifuge tubes Ø 61.4 x 125 mm, sealable with cap no. 17256
	17256 (Round stainless steel sealing cap) Centrifuge lids £156.00 Round stainless steel sealing cap
	15249 (Polypropylene bottle 250 ml) Centrifuge tubes incl. screw cap, Ø 61.4 x 125 mm
	15247 (Polyfluor bottle 250 ml) Centrifuge tubes incl. screw cap, Ø 61.4 x 122 mm
	15248 (Polycarbonate bottle 250 ml) Centrifuge tubes incl. screw cap, Ø 61.4 x 125 mm
	12505 (Angle rotor 6 x 500 ml) Centrifuge rotors £3590.00 Angle rotor 6 x 500 ml, for bottles no. 13507, 15508, 15509
	13507 (Stainless steel bottle 500ml) Centrifuge tubes Ø 69.5 x 152 mm, sealable with cap no. 17256
	15508 (Polypropylene bottle 500ml) Centrifuge tubes Ø 69 x 165 mm, incl. screw cap
	15509 (Polycarbonate bottle 500ml) Centrifuge tubes Ø 69 x 165 mm, incl. screw cap
	14151 (Adapter for 12 reaction vials 1.5/2.2 ml) Centrifuge adapters £78.00 Adapter for 12 reaction vials 1.5/2.2 ml, max. Ø 11 mm, e.g. no. 15008, 15040
	14144 (Adapter for 8 round bottom tubes approx. 10 ml) Centrifuge adapters £78.00 Adapter for 8 round bottom tubes approx. 10 ml, max.
	14149 (Adapter for 5 culture tubes 15 ml) Centrifuge adapters £78.00 Adapter for 5 culture tubes 15 ml, cap max. Ø 23 mm, e.g. no. 15115
	14146 (Adapter for 3 round bottom tubes approx. 30 ml) Centrifuge adapters £78.00 Adapter for 3 round bottom tubes approx. 30 ml max.
	14150 (Adapter for 2 round bottom tubes approx. 42 ml) Centrifuge adapters £78.00 Adapter for 2 round bottom tubes approx. 42 ml, max.
	14148 (Adapter for 2 culture tubes 50 ml) Centrifuge adapters £78.00 Adapter for 2 culture tubes 50 ml e.g. no.15151
	14153 (Adapter for 1 round bottom tube approx. 85 ml) Centrifuge adapters £78.00 Adapter for 1 round bottom tube approx. 85 ml, max.
	14155 (Adapter for 1 bottle 250 ml) Centrifuge adapters £78.00 Adapter for 1 bottle with flat bottom and screw cap 250 ml, max. Ø 61.5 x 90 - 125 mm ...
	12510 (Angle rotor 6 x 1000 ml) Centrifuge rotors £6450.00 Angle rotor 6 x 1000 ml, incl. steel buckets no. 13511, for bottles no. 13510, 15920,...
	13510 (1l Stainless steel bottle inc. cap) Centrifuge tubes 1000ml, incl. cap no. 17520, Ø 100 x 167 - 170 mm
	15920 (1l Polycarbonate bottle inc. cap) Centrifuge tubes 1000ml, incl. screw cap no. 17924, Ø 97 x 175 mm
	15921 (1l Polypropylene bottle inc. cap) Centrifuge tubes 1000ml, incl. screw cap no. 17924, Ø 97 x 175 mm
	14162 (Adapter for 26 reaction vials) Centrifuge adapters £108.00 Adapter for 26 reaction vials 1.5/2.2ml, max. dia. 11mm
	14164 (Adapter for 19 x 10ml tubes) Centrifuge adapters £108.00 Adapter for 19 round-bottom approx 10ml tubes. Max. dia. 16.2/18 x 75-85mm
	14165 (Adapter for 12 x 15ml culture tubes) Centrifuge adapters £108.00
	14167 (Adapter for 8 x 30ml tubes) Centrifuge adapters £108.00 Adapter for 8 round-bottom tubes approx. 30ml, max. dia. 25.5/29 x 90-100mm
	14169 (Adapter for 7 x 42ml tubes) Centrifuge adapters £108.00 Adapter for 7 round-bottom tubes approx. 42ml, max. dia. 29/35 x 100-115mm
	14171 (Adapter for 5 x 50ml culture tubes) Centrifuge adapters £108.00
	14174 (Adapter for 3 x 85ml tubes) Centrifuge adapters £108.00 Adapter for 3 round-bottom tubes approx. 85ml, max. dia. 38/40 x 85-115mm
	14178 (Adapter for 250ml bottle) Centrifuge adapters £108.00 Adapter for flat-bottom bottle 250ml, max. dia. 61.5 x 90-125mm
	14180 (Adapter for 500ml bottle) Centrifuge adapters £108.00 Adapter for 1 bottle 500ml, max. dia. 69 x 165mm
	14182 (Adapter for 500ml Corning bottle) Centrifuge adapters £108.00 Adapter for 1 Corning bottle 500ml pointed-bottom, angle 75°, dia. 96 x 150mm. Includes...
	11805 (6 Place Rotor) Centrifuge rotors £7250.00 6 Place Rotor
	13850 (Bucket) Centrifuge buckets £577.02 Bucket
	17651 (Round carrier for 20 tubes 4 - 7ml) Centrifuge adapters £84.00 Round carrier for 20 tubes 4 - 7 ml, flat and round bottom, e.g. Monovette, Primavette,...
	17652 (Round carrier for 36 tubes 5 ml) Centrifuge adapters £84.00 Round carrier for 36 tubes 5 ml, max. Ø 12.5 x 60 - 80 mm, e.g. no. 15060, RIA -,...
	15060 (Polystyrene tube 5ml (RIA)) Centrifuge tubes Ø 12 x 75 mm
	17653 (Round carrier for 26 e.g. reaction vials 1.5/2.2 ml) Centrifuge adapters £84.00 Round carrier for 26 e.g. reaction vials 1.5/2.2 ml, max.
	17654 (Round carrier for 32 tubes approx. 7 ml) Centrifuge adapters £84.00 Round carrier for 32 tubes approx. 7 ml, max. Ø 12.5 x 85 - 115 mm, e.g. no. 15007, 15027
	15007 (Centrifuge glass tube 6ml) Centrifuge tubes Ø 12 x 100 mm
	15027 (Centrifuge glass tube 6ml) Centrifuge tubes Ø 12 x 100 mm, graduated
	17655 (Round carrier for 20 tubes 10 - 12 ml) Centrifuge adapters £84.00 Round carrier for 20 tubes 10 - 12 ml, max. Ø 16.2/18 x 65 - 90 mm, e.g. no. 15000,...
	17656 (Round carrier for 22 tubes 5 - 6 ml) Centrifuge adapters £84.00 Round carrier for 22 tubes 5 - 6 ml, max. Ø 13.5/17.5 x 70 - 90 mm, e.g. no. 15060...
	17658 (Round carrier for 19 tubes 9-15ml, Monovettes 9-10ml) Centrifuge adapters £84.00 Round carrier for 19 tubes 9 - 15 ml, max. Ø 17.2/19.5 x 85 - 115 mm, e.g. no. 15015,...
	15022 (Glass tube 13.5ml) Centrifuge tubes Special glass tube 13.5ml, Ø 17 x 110 mm,max. allowable speed 7000 rpm
	15015 (Centrifuge glass tube 10-12ml) Centrifuge tubes Ø 16 x 100 mm
	15024 (Centrifuge glass tube 12ml) Centrifuge tubes Ø 16 x 100 mm, graduated
	15023 (Polypropylene tube 14ml) Centrifuge tubes Ø 17 x 100 mm
	15020 (Polystyrene tube 14ml) Centrifuge tubes Ø 17 x 100 mm
	17659 (Round carrier for 12 culture tubes 15 ml) Centrifuge adapters £84.00 Round carrier for 12 culture tubes 15 ml no. 15115, Nunc, Corning, Falcon and Greiner...
	17660 (Round carrier for 15 culture tubes 15 ml) Centrifuge adapters £84.00 Round carrier for 15 culture tubes 15 ml e.g. Falcon and Greiner tubes with caps Ø max....
	17670 (Round carrier for 8 tubes 25 - 30 ml) Centrifuge adapters £84.00 Round carrier for 8 tubes 25 - 30 ml, max. Ø 25.4/30 x 90 - 115 mm, e.g. no. 15025,...
	15033 (Glass tube 32ml) Centrifuge tubes Special glass tube 32ml, Ø 24 x 105 mm, max. allowable speed 7000 rpm
	15025 (Centrifuge glass tube 26ml) Centrifuge tubes Ø 24 x 100 mm
	15026 (Centrifuge glass tube 27ml) Centrifuge tubes Ø 24 x 100 mm, graduated
	17675 (Round carrier for 4 tubes 50 ml) Centrifuge adapters £84.00 Round carrier for 4 tubes 50 ml, max. Ø 35/38 x 90 - 115 mm, e.g. 15049, 15056, 15050
	15056 (Centrifuge glass tube 58ml) Centrifuge tubes Ø 34 x 100 ml, graduated
	15050 (Centrifuge glass tube 58ml) Centrifuge tubes Ø 34 x 100 mm
	15049 (Polycarbonate tube 65ml) Centrifuge tubes Ø 34 x 100 mm, graduated
	17676 (Round carrier for 7 tubes 40 - 50 ml) Centrifuge adapters £84.00 Round carrier for 7 tubes 40 - 50 ml with screw cap, max. Ø 29/32 x 90 - 115 mm, e.g....
	17677 (Round carrier for 5 culture tubes 50 ml) Centrifuge adapters £84.00 Round carrier for 5 culture tubes 50 ml, e.g. no. 15151, Nunc, Corning, Falcon and Greiner
	17678 (Round carrier for 5 culture tubes 50 ml) Centrifuge adapters £84.00 Round carrier for 5 culture tubes 50 ml with skirt or flat bottom, max. Ø 29/36 x 90 -...
	17682 (Round carrier for 1 Corning bottle 500 ml) Centrifuge adapters £84.00 Round carrier for 1 Corning bottle 500 ml, no. 432123, angle 75°, Ø 96 x 150 mm, pointed...
	17685 (Round carrier for 3 tubes 78 - 85 ml) Centrifuge adapters £84.00 Round carrier for 3 tubes with screw cap 78 - 85 ml, max. Ø 38/40 x 90 - 110 mm, e.g. no....
	17690 (Round carrier for 2 tubes approx. 100 ml) Centrifuge adapters £84.00 Round carrier incl. rubber cushion no. 16051, for 2 tubes approx. 100 ml with, max. Ø...
	15100 (Centrifuge glass tube 100ml) Centrifuge tubes Ø 44 x 100 mm
	15103 (Polycarbonate tube 110ml) Centrifuge tubes Ø 45 x 100 mm, graduated
	15106 (Centrifuge glass tube 100ml) Centrifuge tubes Ø 44 x 100 mm, graduated up to 80 ml
	15102 (Polypropylene tube 120ml) Centrifuge tubes Ø 45 x 100 mm
	17692 (Round carrier for 1 bottle 145 ml) Centrifuge adapters £84.00 Round carrier for 1 bottle with flat bottom and screw cap 145 ml, max. Ø 51 x 90 - 115...
	15125 (Polypropylene bottle 145ml inc. cap) Centrifuge tubes Ø 51 x 99 mm, screw cap
	17694 (Round carrier for 1 bottle 150 or 200 ml) Centrifuge adapters £84.00 Round carrier for 1 bottle 150 or 200 ml with pointed bottom angle 88°, max. Ø 60 x 120...
	17695 (Round carrier for 1 tube 175 - 250 ml) Centrifuge adapters £84.00 Round carrier incl. rubber cushion no. 16250 for 1 tube 175 - 250 ml, max. Ø 57.5 x 90 - ...
	15201 (Centrifuge glass tube 200ml) Centrifuge tubes Ø 56 x 112 mm
	15206 (Centrifuge glass tube 200ml) Centrifuge tubes Ø 56 x 113 mm, graduated
	15250 (Centrifuge glass tube 230ml) Centrifuge tubes Ø 56 x 134 mm
	15251 (Polypropylene tube 250ml) Centrifuge tubes Ø 57 x 135 mm
	15254 (Centrifuge glass tube 230ml) Centrifuge tubes Ø 56 x 135 mm, graduated
	17696 (Round carrier for 1 bottle 200 ml) Centrifuge adapters £84.00 Round carrier for 1 bottle with flat bottom and screw cap 200 ml approx., max. Ø 57 x 90...
	15202 (Polypropylene bottle 190ml inc. cap) Centrifuge tubes Ø 56 x 112mm, screw cap
	15203 (Polycarbonate bottle 207ml inc. cap) Centrifuge tubes Ø 56 x 113mm, screw cap
	17698 (Round carrier for 1 bottle 250 ml) Centrifuge adapters £84.00 Round carrier for 1 bottle with flat bottom and screw cap 250 ml, max. Ø 61.5 x 90 - 125...
	13851 (Adapter for round carriers) Centrifuge adapters £108.70 Adapter for the system of round carriers, dia. 100mm
	13852 (Adapter for 1000ml bottles) Centrifuge adapters £115.40
	17775 (Adapter for 19 x 15ml culture tubes) Centrifuge adapters £142.00
	17777 (Adapter for 8 x 50ml culture tubes) Centrifuge adapters £142.00
	13845 (Microtitre Bucket) Centrifuge buckets £974.11 Microtitre Bucket
	13860 (Double Bucket) Centrifuge buckets £1613.18 Double Bucket
	13865 (Blood bags) Centrifuge tubes
	13864 (Blood bags) Centrifuge tubes
	17750 (Blood bag adapter for smaller bags or reduced filling) Centrifuge adapters £11.00 Blood bag adapter for smaller bads or reduced filling
	11806 (6 Place Rotor) Centrifuge rotors £5250.00 6 Place Rotor
	13855 (Dual compartment bucket) Centrifuge buckets £1618.15 Dual compartment bucket
