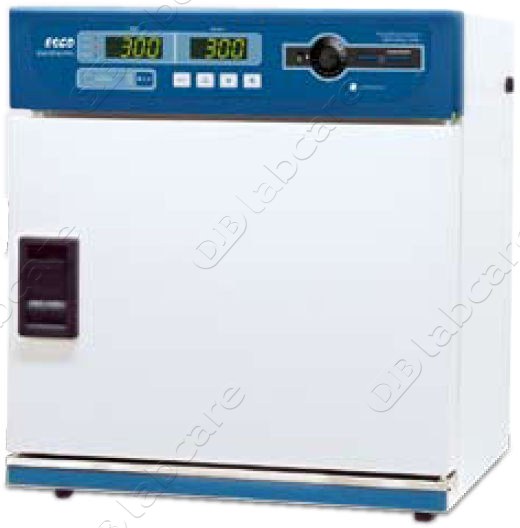

Isotherm General Purpose Oven, 32L, 220-240VAC 50/60Hz OFA-32-8

Introducing Esco Isotherm® - world class laboratory ovens from Esco with the technologies and compliance to prove it. ergonomic, intuitive interfaces, microprocessor PID controls with programming options, 4 zone heated air jacket, precisely tuned and tested ventilation and insulation package.

This 32 litre laboratory oven comes with a 3 year manufacturer's warranty

Details

Key Features

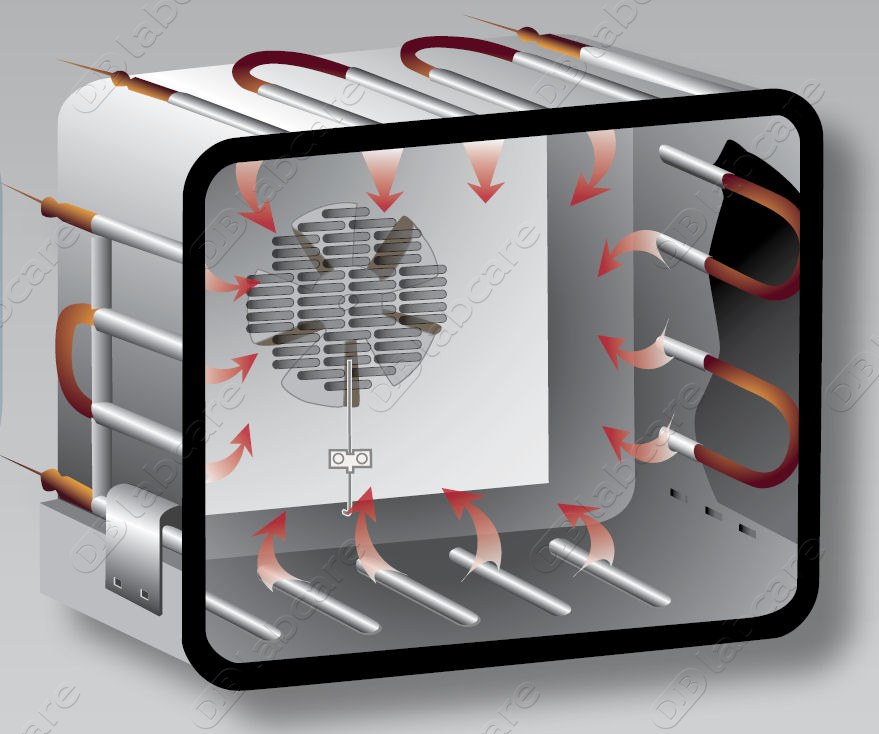

SolarisTM Pre-Heat Chamber Technology ensures no heating elements directly presently in the chamber ensure maximum user safety. A 4 zone heated air jacket ensures stable heating and maximum temperature uniformity in the chamber, and the standard temperature range of up to 300°C promotes maximum application flexibility picture 3.

The VentiFlow™ Ventilation System with its forced convection design produces higher heating and drying rates, improved temperature uniformity and reduced fluctuation, includes features such as the chamber fan inlet that pulls air away from the user, preventing exposure to blasts of hot air when the door is opened. Fan speed and air exchange rates are adjustable, while low energy consumption reduces operating costs.

Superior Insulation consisting of multi layer chamber, pre-heat chamber, insulation and external carcass. Unique door ventilation design reduces door temperature even when the chamber temperature is at the maximum operating point.

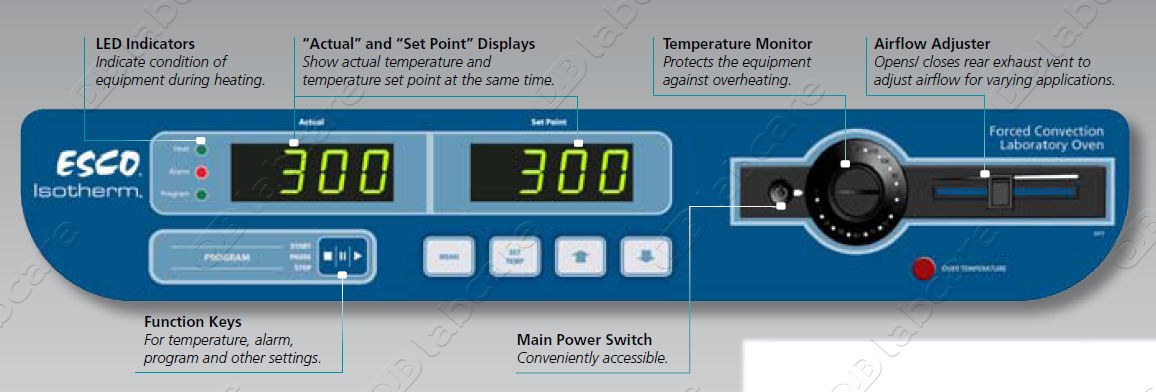

SmartSense™ Microprocessor PID Control Technology with instrument-grade precision platinum temperature probe. The built-in menu is intuitive, easy to operate; a left display shows parameter being set, and a right display shows present value - display units are selectable between °C / °F. A tuned PID control to ensure fast ramp time, prevent overshoot and ensure stable temperature once set point is achieved. Configuration from 10 programs with 5 segments to 1 program with 50 segments is possible, and these can be set up to repeat automatically or wait for user confirmation at a particular segment before proceeding.

Quality Esco Construction main body is electrogalvanised steel with white oven-baked epoxy antimicrobial powder-coated finish; external surfaces are powder coated with Esco ISOCIDE™ to eliminate 99.9% of surface bacteria within 24 hours of exposure.

Technical Specification

• Volume 32 litre (1.13 cu.ft)

• Temperature Range Ambient +50C to 3000C

• Temperature Variation Per DIN 12880 Spatial Uniformity: at 70 °C <=+/-0.70C, at 150 °C <=+/-1.50C, at 250 °C <=+/-3.30C

• Temperature Fluctuation Per DIN 12880 Control Fluctuation: at 70 °C <=+/-0.30C, at 150 °C <=+/-0.30C, at 250 °C <=+/-0.30C

• Number of Shelves Standard 2 (Maximum 3)

• Load Per Shelf 15 kg (33 lbs)

• Total Load, Maximum 30 kg (66 lbs)

• Oven Power/ Amp 1480 W / 6.4 A
