DJB Labcare

* * *
Sigma 8K 400V/50hz - 3 Phase Sigma 8K 400V/50hz - 3 Phase Sigma 8K 400V/50hz - 3 Phase

PDFBrochure (1.0MB PDF)

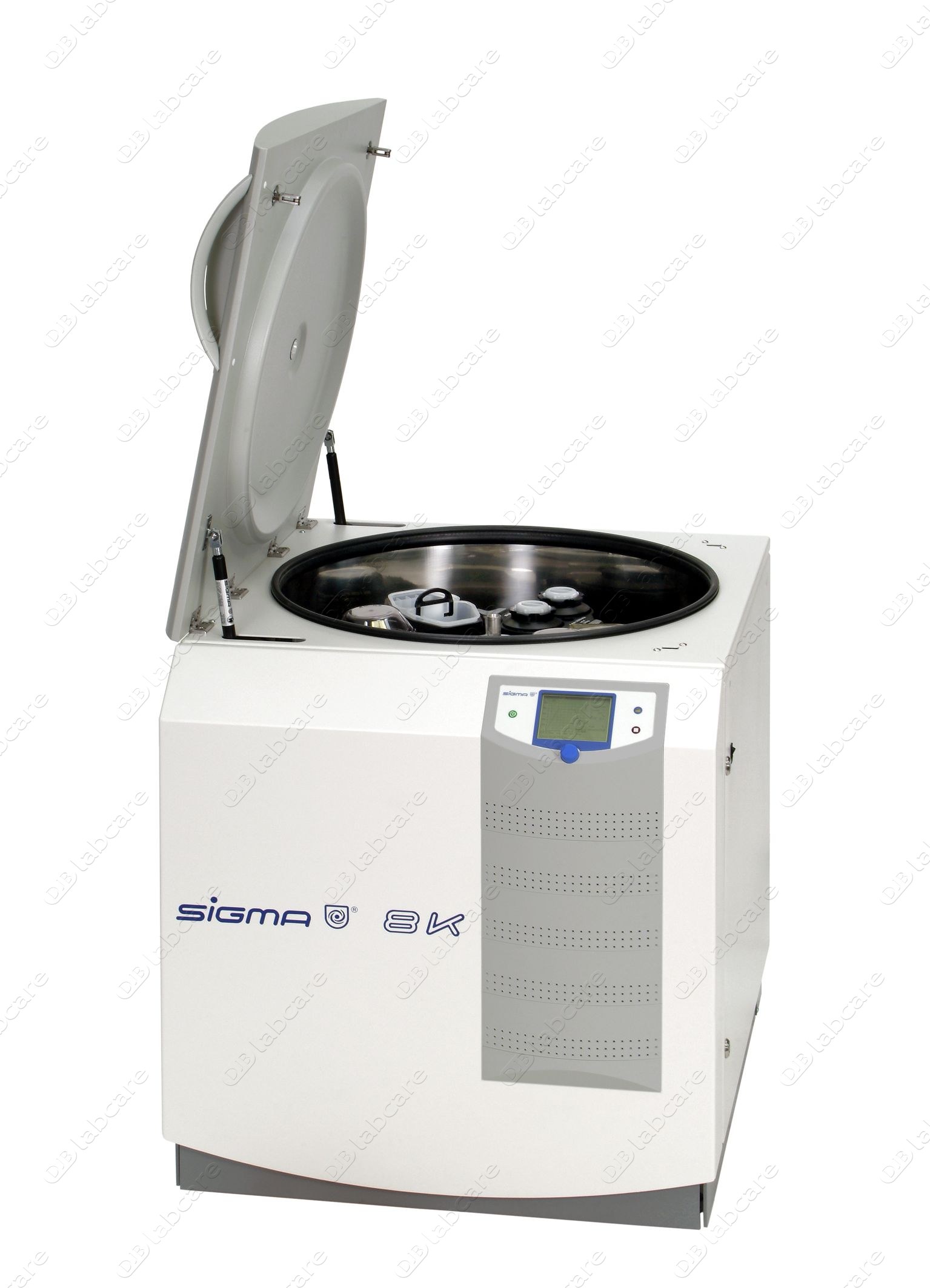

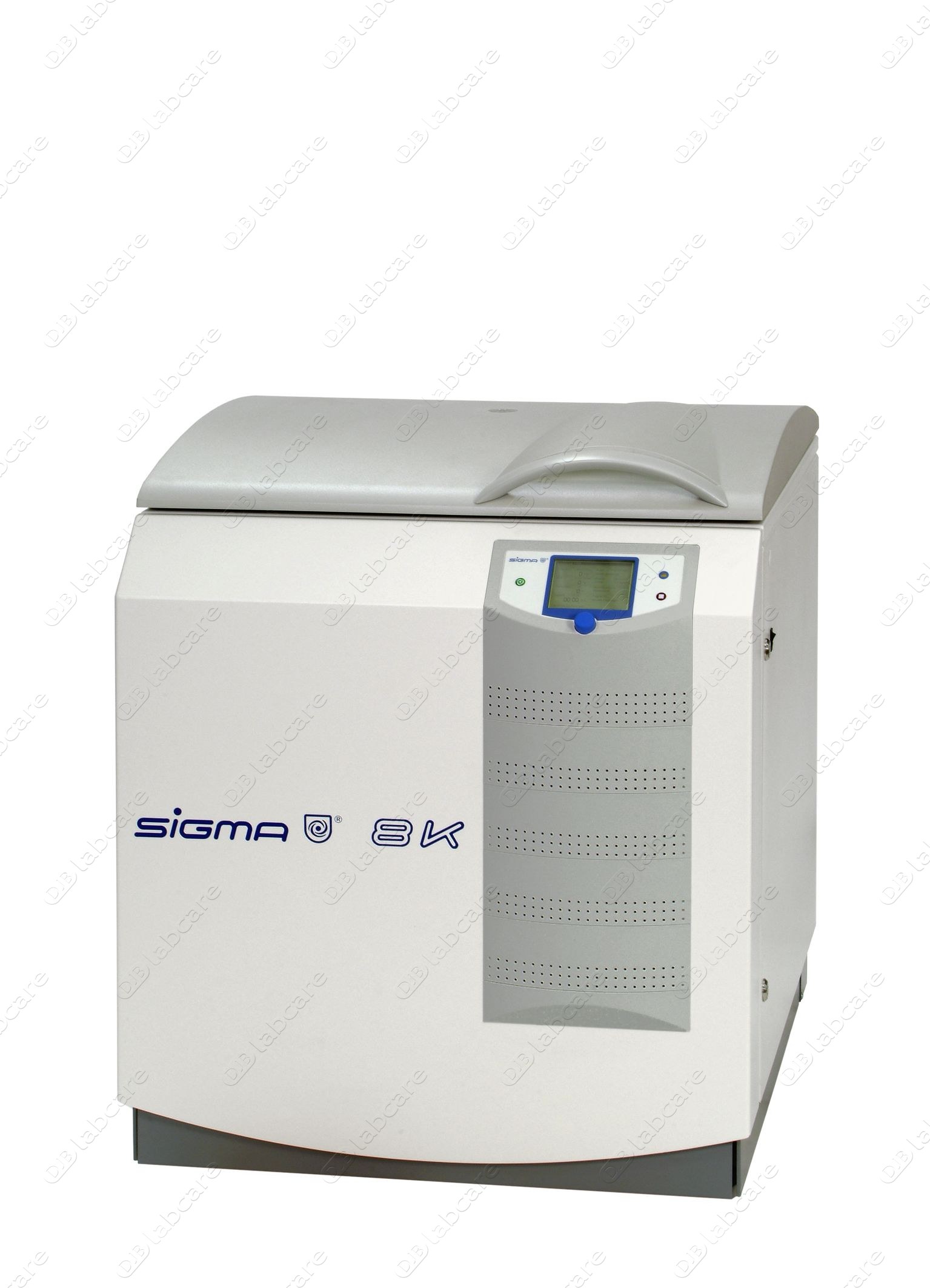

Sigma 8K 400V/50hz - 3 Phase 10855

Very High capacity (12x1000ml), Compact refrigerated floor standing centrifuge for universal use in blood banks, clinical laboratories and research. 3 x 400V/50hz - 3 Phase

Details

  • Compact refrigerated floor standing centrifuge for universal use in blood banks, clinical laboratories and research

  • Capacity up to 6 l in angle rotor; 12 x 1l, 6 x 1.5l or 12 blood bags in swing-out rotor

  • Solid construction, suitable for continuous use

  • Maintenance-free drive, high imbalance tolerance up to approx. 80 g

  • Speed range 100 - 10.500 rpm

  • Automatic rotor identification prevents spinning rotors overspeed

  • Efficient refrigeration; temperature adjustable between -20 °C and +40 °C, standstill cooling, with refrigerant R404a

  • Stainless steel chamber

  • The lid is hinged on the left hand side

  • Easy open the centrifuge lid via pneumatic springs

  • Two motorized lid locks provide safe, assured lid-locking

  • Power failure, emergency lid opening

  • Ergonomic loading height of just 88 cm

  • The user friendly control unit is integrated in the front panel

  • Centrifuge fits through a door opening of only 82 cm

  • The centrifuge stands on movable castors an adjustable feet to even out the floor

  • Easily serviceable

  • All international standards are met, e.g. IEC 1010, CE, WEEE

Options

Data logging via RS 232 Water-cooled compressors Sealed housing and water-cooled compressors, sterile room version Inert gas injection with analysis of the oxygen content in the exhaust emission Spincontrol - Professional

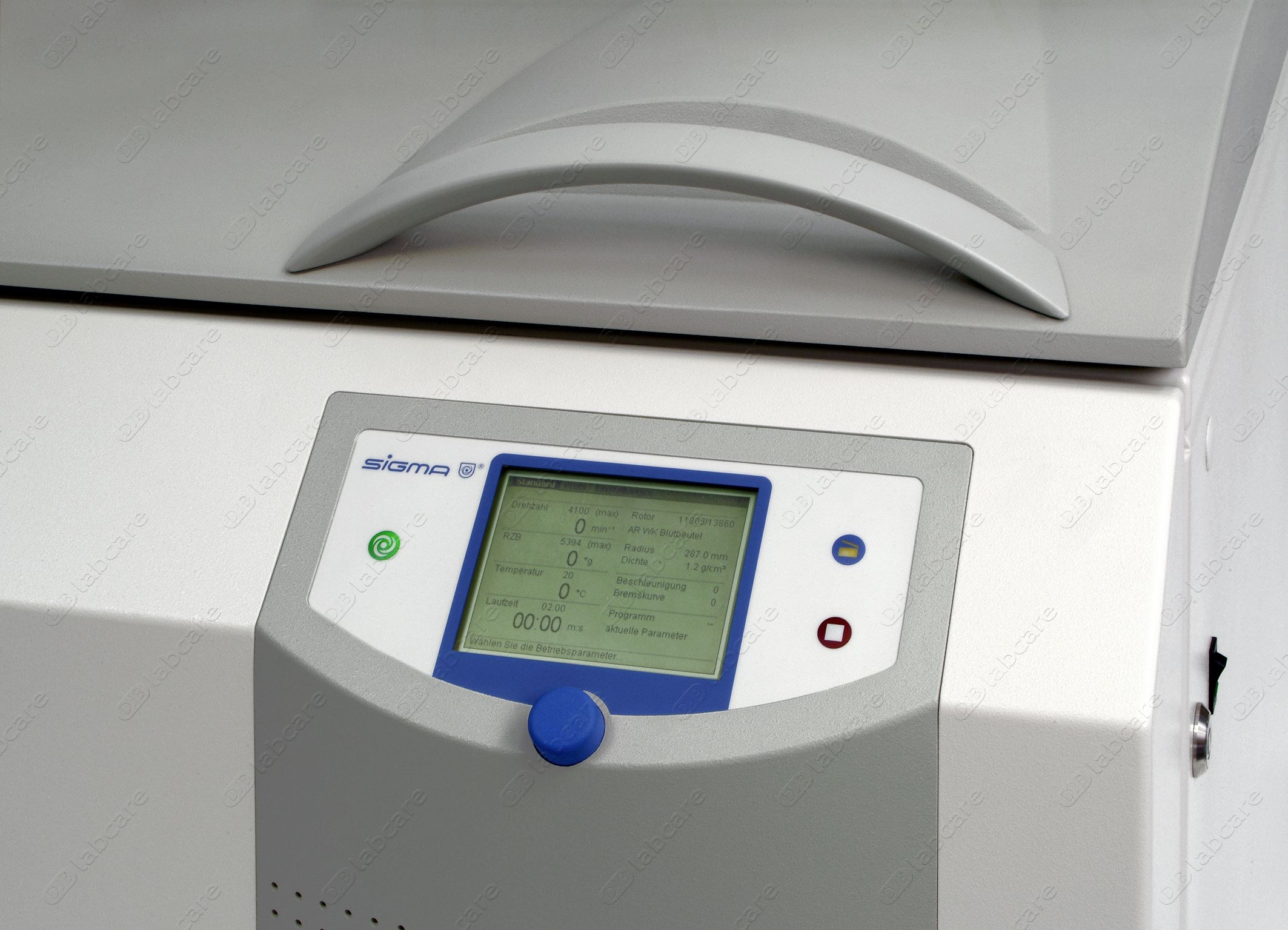

Sophisticated version of the unique SIGMA single-knob control with backlit graphical LCD-display Selectable languages: German, English All important run parameters at a glance Permanent display of set and actual values: time, speed, gravitational field and temperature 60 programs can be named and stored in a memory with all run parameters Rapid cooling program 10 linear, 10 quadratic and 10 user defined acceleration an deceleration curves including brakeless deceleration Setting of values in steps of 100 or 1 rpm resp. 10 or 1 x g Time 0 - 99 h 59 min, continuous operation, short run Electronic imbalance monitoring, acoustic and visual alarm with fast deceleration End of run alarm, selectable, can be switched of Plain text display of information an error messages Run time and cycles count for the rotors used

Selectable additional functions: Time integral, standstill cooling, automatic unlocking of lid after end of run, timing after set speed has been reached, password protection of programs in memory, information in case of excessive chamber temperature with adjustable tolerance, speed adjustment for substances with density exceeding 1,2 g/ccm, start delay, automatic speed adjustment for different radii to have same gravitational field, temperature display in °F oder °C, display of acceleration and deceleration curves, program rotation

Option: Interface for optical end of run indication

Order. no. 10855 (3 x 400 V /50 Hz) air cooled Order. no. 10856 (3 x 220 V / 60 Hz) air cooled Order. no. 10857 (3 x 400 V / 50 Hz) water cooled

Meets the requirements of IEC 1010 part 1 and part 2.

Features

Refrigeration

Typical capacities

100 x Microlitre 0.2-2ml

648 x Blood tube 4-7mm (13mm)

114 x Blood tube 7-10ml (16mm)

72 x Conical 15ml

30 x Conical 50ml

42 x Universal 25ml

Availability

Not currently available

Accessories for Sigma 8K 400V/50hz - 3 Phase

12202, Angle rotor 100 x 1.5/2.2 ml Centrifuge rotors

Angle rotor 100 x 1.5/2.2 ml, for e.g. reaction vials no. 15008, 15040, (2 lines, angle...

Angle rotor 100 x 1.5/2.2 ml

12258, Angle rotor 8 x 250 ml Centrifuge rotors

No Longer Available As New

Angle rotor 8 x 250 ml

12505-H, Angle rotor 6 x 500 ml Centrifuge rotors

Angle rotor 6 x 500 ml, for bottles no. 13507, 15508, 15509

Angle rotor 6 x 500 ml

12510, Angle rotor 6 x 1000 ml Centrifuge rotors

Angle rotor 6 x 1000 ml, incl. steel buckets no. 13511, for bottles no. 13510, 15920,...

Angle rotor 6 x 1000 ml

11805, 6 Place Rotor Centrifuge rotors

6 Place Rotor

6 Place Rotor

11806, 6 Place Rotor Centrifuge rotors

6 Place Rotor

6 Place Rotor

12510-H, Angle rotor 6 x 1000 ml Centrifuge rotors

Angle rotor 6 x 1000 ml, incl. steel buckets no. 13511, for bottles no. 13510, 15921,...

Angle rotor 6 x 1000 ml

7 accessories, of 146 including subaccessories Show all...
